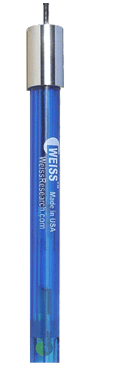

SilverCap™ Refillable Epoxy Body pH Electrodes

Weiss SilverCap™, single/double-junction, refillable Ag/AgCl combination pH electrodes are designed for  laboratory use. They normally have the longer life span than sealed ones.

               The common characteristics of these electrodes are:

  • Superior Stability - thanks to the special manufacture's knowledge
  • Fast response
  • Minimum sodium (alkaline) error
  • pH 0 -14 full range measurement
  • Special internal fill offers full range linear temperature compensation
  • Very low sensor glass membrane resistance
  • Zero and Isopotential: ~pH 7
  • Unique designed electrodes fit almost all kinds of pH meter



Electrode P/N

PHS-0102-3B

PHS-0202-3B

Bulb Shape

Ball

Ball

Body Material/Color

Epoxy / Blue

Epoxy / Blue

Type of Reference

Ag/AgCl

Ag/AgCl

Sealed/Refillable

Refillable

Refillable

pH range

0-14

0-14

Junction Material

Ceramic wick

Ceramic wick

Junction type

Single

Double

Max Temp. (˚C)

80

80

Dimensions (mm)

12 x 115

12 x 115

Cable length (m)

1.0 m

1.0 m

Connector

BNC

BNC
