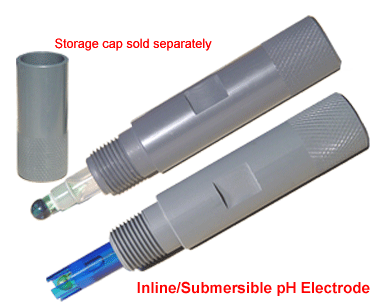

Inline/ Submersible Electrodes

The common features of Inline/submersible pH electrodes

  • ElectroJelly™ filled unless specified
  • Ag/AgCl Reference
  • Operating temperature: 100 ˚C for glass body electrode, 80 ˚C for epoxy body electrode
  • Operating Pressure: 150 psi for glass body, 100 psi for epoxy body electrodes
  • ½"(M) NPT thread
  • Housing size: 4.5" x 1" (dia)
  • The default length of electrode beyond housing is 1", but it can be manufactured according your requirement.
  • 10 feet low noise cable with BNC connector, other length of cable and connectors are available, please specify when ordering

Industrial
Inline/Submersible
Removeable/Disposable
Self-cleaning (flat)
Other Fitting
Epoxy Body
Gel Sealed
ElectroJelly™ Sealed
Refillable

Glass Body
Detachable
Flat Membrane
Triune (3-in-1) Probes
ReallyFlow™ pH

Part #

Housing Material

Electrode body

Junction

WP-861-10B

CPVC

Glass

Double

WP-863-10B

CPVC

Glass

Single

WP-865-10B

PVC

Glass

Double

WP-867-10B

PVC

Glass

Single

WP-871-10B

CPVC

Epoxy

Double

WP-873-10B

CPVC

Epoxy

Single

WP-875-10B

PVC

Epoxy

Double

WP-877-10B

PVC

Epoxy

Single

12CAP

PVC storage cap for ½" NPT (M) electrode
